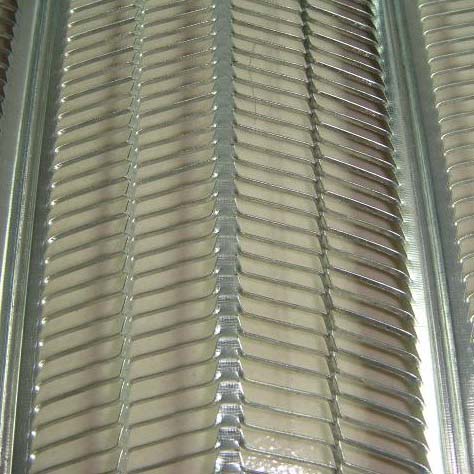

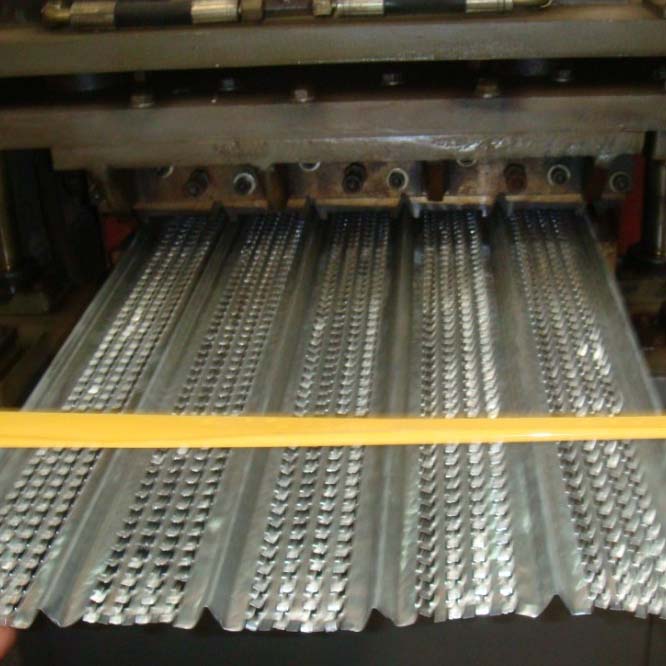

Rib lath is one kinds of the new products we made. According to the construction ways, we are inovation the new goods still.
Besince Bib Lath is widely used as a plaster backing on ceilings, walls and stud partitions. It is also ideal for refurbishing damaged or aged masonry walls when a key for rendering is not certain due to disintegration or softening of the wall face.

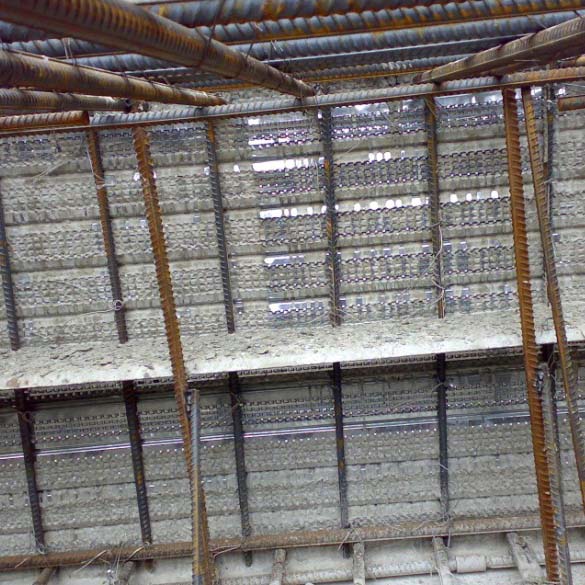

The deep longitudinal ribs provide extra strength enabling use on walls and ceiling spans of24".This excellent product is also used on2"studless partitions and as reinforcement for concrete floor and roof slabs
Specifications
Finish |
Wt.per Sq.yd |
Sheet size |
Pes/Bid |
Yds/Bdi |
Yds/Paliet |
||||||
Galv. |
3.4 lbs |
27""X96"" |
10 |
20 |
1000 |
||||||
Model |
Material.Thickness/mm |
SWxLW/mm. |
RH/mm |
R.D/mm |
WT/kg/m2 |
Shell |
|||||
BRL30 |
0.30 |
12X8 |
5 |
100 |
1.2 |
610 |
|||||
BRL35 |
0.35 |
12X8 |
5 |
100 |
1.4 |
610 |
|||||
BRL40 |
0.40 |
12X8 |
5 |
100 |
1.6 |
610 |
|||||
M.T=Material Thickness,SW*LW=Size of opening,R.H=Rib Height,R.D=Rib distance THere are 7 ribs spaced on 610mm width and 8 lines of openings between adjacent two ribs.
Model |
M.T/mm |
SWxLW/mm. |
RH/mm |
R.D/mm |
WT/kg/m2 |
Shell |
RLAG307080 |
0.30 |
12X8 |
8 |
100 |
1.2 |
610 |
RLAG357080 |
0.35 |
12X8 |
8 |
100 |
1.4 |
610 |
RLAG407080 |
0.40 |
12X8 |
8 |
100 |
1.6 |
610 |
M.T=Material Thickness,SW*LW=Size of opening,R.H=Rib Height,R.D=Rib distance THere are 9 ribs spaced on 610mm width and 4 lines of openings between adjacent two ribs.
Model |
M.T/mm |
SWxLW/mm. |
RH/mm |
R.D/mm |
WT/kg/m2 |
Shell |
RLAG3090480 |
0.30 |
3.5x13 |
4 |
60 |
1.27 |
610 |
RLAG3590480 |
0.35 |
3.5x13 |
4 |
60 |
1.49 |
610 |
RLAG4090480 |
0.40 |
3.5x13 |
4 |
60 |
1.70 |
610 |
M.T=Material Thickness,SW*LW=Size of opening,R.H=Rib Height,R.D=Rib distance THere are 11 ribs spaced on 750mm width and 4 lines of openings between adjacent two ribs.
Model |
M.T/mm |
SWxLW/mm. |
RH/mm |
R.D/mm |
WT/kg/m2 |
Shell |
RLAG301140 |
0.30 |
3.5x13 |
4 |
75 |
1.27 |
750 |
RLAG351140 |
0.35 |
3.5x13 |
4 |
75 |
1.49 |
750 |
RLAG401140 |
0.40 |
3.5x13 |
4 |
75 |
1.70 |
750 |
M.T=Material Thickness,SW*LW=Size of opening,R.H=Rib Height,R.D=Rib distance THere are 7 ribs spaced on 610mm width and 4 lines of openings between adjacent two ribs.
Model |
M.T/mm |
SWxLW/mm. |
RH/mm |
R.D/mm |
WT/kg/m2 |
Shell |
RLAG357040 |
0.35 |
20x9 |
8 |
75 |
1.00 |
610 |
RLAG407040 |
0.40 |
20x9 |
8 |
75 |
1.13 |
610 |
RLAG3457040 |
0.45 |
20x9 |
8 |
75 |
1.27 |
610 |
M.T=Material Thickness,SW*LW=Size of opening,R.H=Rib Height,R.D=Rib distance THere are 5 ribs spaced on 610mm width and 8 lines of openings between adjacent two ribs
Model |
M.T/mm |
SWxLW/mm. |
RH/mm |
R.D/mm |
WT/kg/m2 |
Shell |
RLAG305080 |
0.30 |
16x11 |
8 |
150 |
0.88 |
610 |
RLAG355080 |
0..35 |
16x11 |
8 |
150 |
1.18 |
610 |
RLAG405080 |
0.40 |
16x11 |
8 |
150 |
1.46 |
610 |

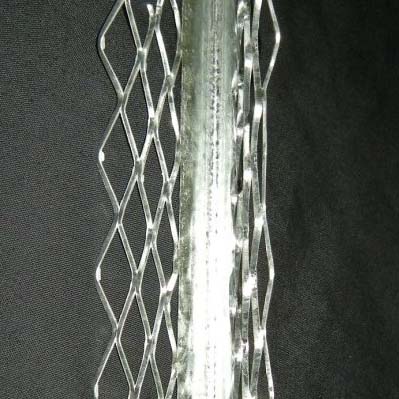

Corner Bead
Code |
Length |
Flange size |
Pcs/ctn |
EA10-60 |
8ft |
2-3/4"×2-3/4" |
30 |
EA10-60 |
10ft |
2-3/4"×2-3/4" |
30 |

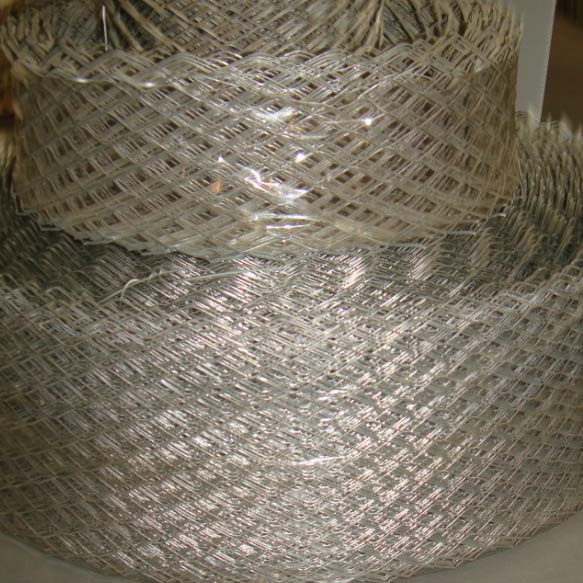

And the coil mesh and sm mould mesh are also available.
