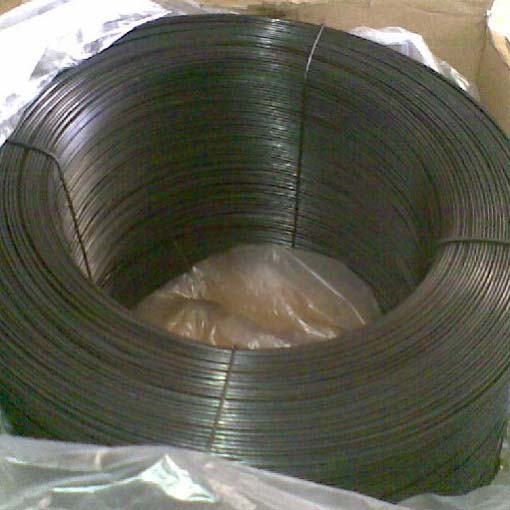

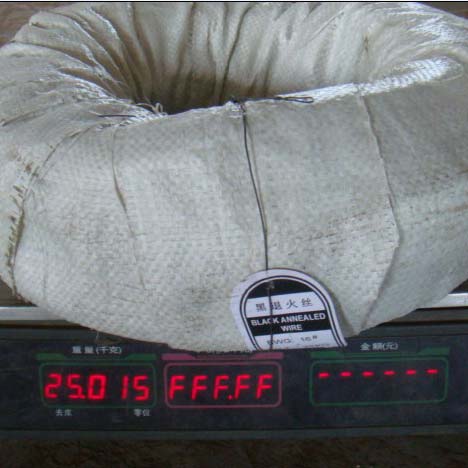

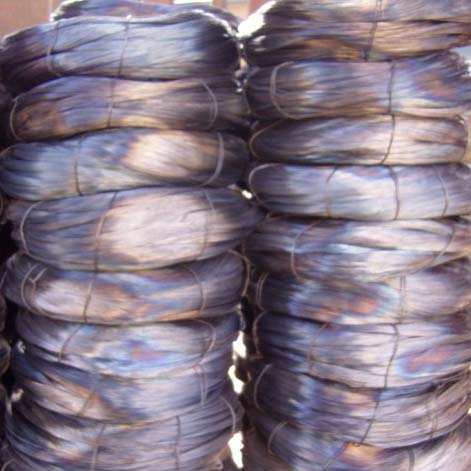

Black Wire and Black Annealed Wire
Black Coil Wire, Black Twisted Wire
Black Wire is in hard condition and Black Annealed wire is in soft condition. And Black Wire after annealling change to be Black Annealed Wire soft wire.
BESINCE offers excellent flexibility and softness through the process of oxygen free annealing. Of course, the hard black wire is also available. It is mostly used in construction, industry, agriculture and daily as binding materials, baling wire and raw mateiral of making processing wire products.
Wire Diamter from 0.28mm to 5.5mm

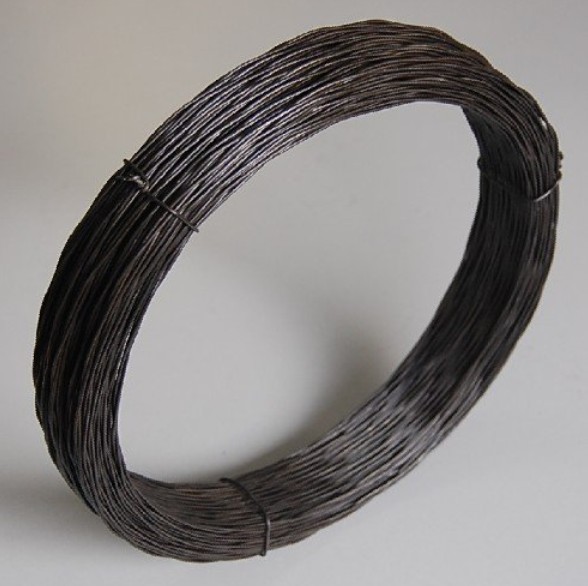

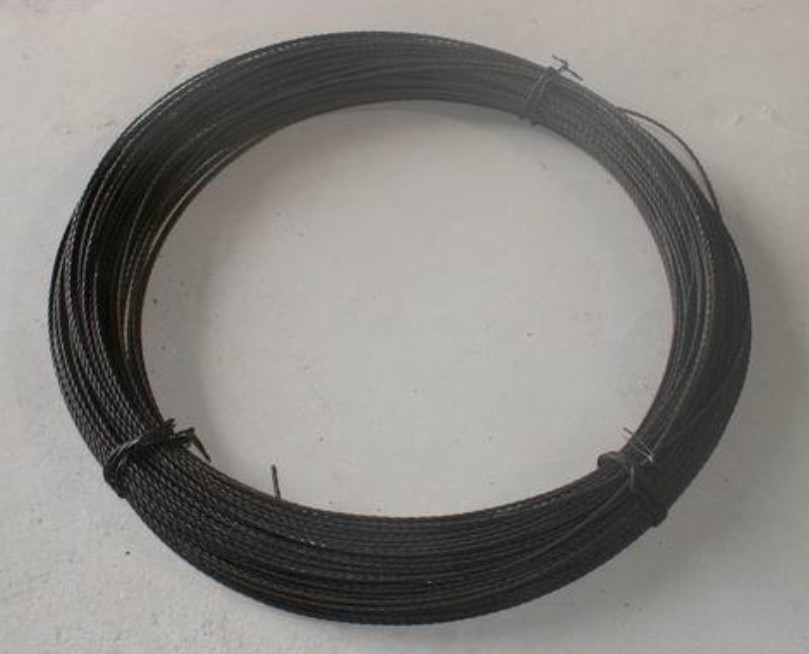

Black Wire Twisted is also called Black Twisted Wire, or Black Annealed Twisted Wire, normal specifications 1x2, 1x3, 1x6, 1x7, 1x9, etc.
General materials is low carbon steel wire in grade Q195, Q235. And it also can be in grade SAE1006/1008 DIN17140/D7-1 D8-1, etc.
Wire Gauge |
SWG in mm |
BWG in mm |
In Metric System mm |
6# |
4.88 |
5.16 |
5.00 |
7# |
4.47 |
4.57 |
4.50 |
8# |
4.06 |
4.19 |
4.00 |
9# |
3.66 |
3.76 |
3.70- |
10# |
3.25 |
3.40 |
3.50 |
11# |
2.95 |
3.05 |
3.00 |
12# |
2.64 |
2.77 |
2.80 |
13# |
2.34 |
2.41 |
2.50 |
14# |
2.03 |
2.11 |
0.21 |
15# |
1.83 |
1.83 |
1.80 |
16# |
1.63 |
1.65 |
1.65 |
17# |
1.42 |
1.47 |
1.40 |
18# |
1.22 |
1.25 |
1.20 |
19# |
1.02 |
1.07 |
1.00 |
20# |
0.91 |
0.89 |
0.90 |
21# |
0.81 |
0.81 |
0.80 |
22# |
0.71 |
0.71 |
0.70 |
23# |
0.61 |
0.64 |
0.62 |
24# |
0.56 |
0.56 |
0.56 |
25# |
0.51 |
0.51 |
0.51 |
