Product Name:Steel Grating
Product Info:


Steel Grating is made of flat steel and bars by welding with certain distances. It goes through cutting, opening, edging and other processes. Steel grating enjoys the features of high strength, light structure, high bearing, convenience for loading and installing, and other properties. The hot dipped zinc coating gives the product excellent anti-corrosion resistance.

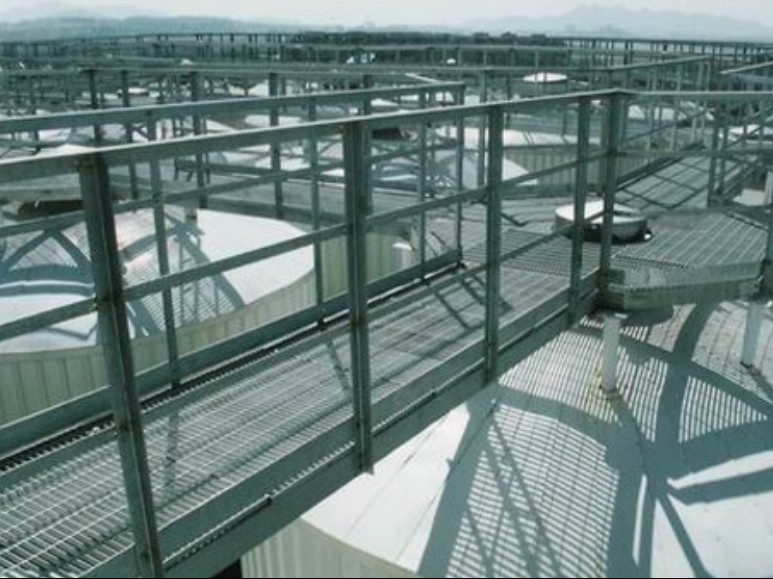

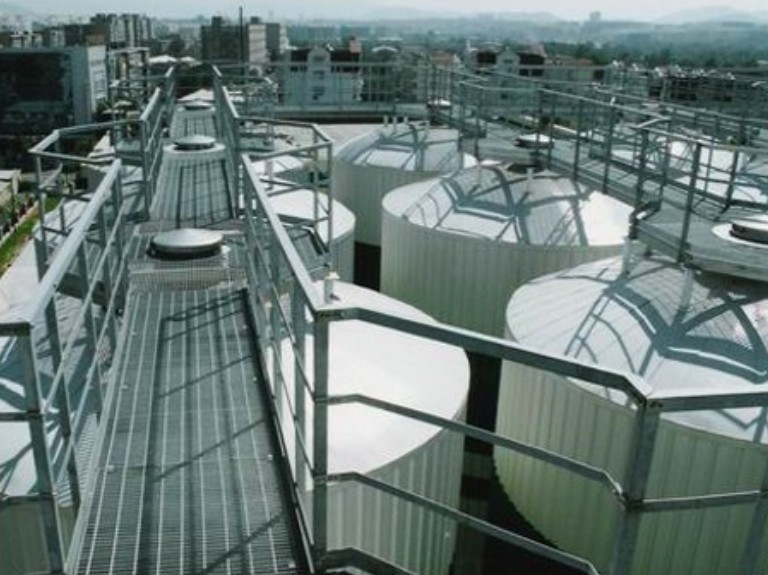

Steel Grating is widely used in the platform, corridor, bridge, well covers, stairs, fencing for petroleum, chemical, power plant, waste treatment plant, civil engineering projects and environmental projectsetc.

Cross Rod Pitch

load Bar Pitch

load Bar Specification(Width×Thickness)

20×3

25×3

32×3

40×3

20×5

25×5

30

100

G203/30/100

G253/30/100

G323/30/100

G403/30/100

G205/30/100

G255/30/100

50

G203/30/50

G253/30/50

G323/30/50

G403/30/50

G205/30/50

G255/30/50

40

100

G203/40/100

G253/40/100

G323/40/100

G403/40/100

G205/40/100

G255/40/100

50

G203/40/50

G253/40/50

G323/40/50

G403/40/50

G205/40/50

G255/40/50

60

50

-

G253/60/50

G253/60/50

G403/60/50

G205/60/50

G255/60/50

Cross Rod Pitch

load Bar Pitch

load Bar Specification(Width×Thickness)

32×5

40×5

45×5

50×5

55×5

60×5

30

100

G325/30/100

G405/30/100

G455/30/100

G505/30/100

G555/30/100

G605/30/100

50

G325/30/50

G405/30/50

G455/30/50

G505/30/50

G555/30/50

G605/30/50

40

100

G325/40/100

G405/40/100

G455/40/100

G505/40/100

G555/40/100

G605/40/100

50

G325/40/50

G405/40/50

G455/40/50

G505/40/50

G555/40/50

G605/40/50

60

50

G325/60/50

G405/60/50

G455/60/50

G505/60/50

G555/60/50

G605/60/50
