Product Name:Galvanized Wire
Product Info:

Material: Low carbon steel, Middle carbon steel, High carbon steel

Surface: Electro galvanized or Hot dipped galvanized

Size: 8 Gauge to 34 Gauge

Usage: It is widly used in making wire mesh, making spring, brush, etc. And it is also widly used in building constructions and machines, as binding wire and can be also as stitching wire, etc.

Gauge

SWG in mm

BWG in mm

In Metric System mm

8#

4.06

4.19

4.00

9#

3.66

3.76

-

10#

3.25

3.40

3.50

11#

2.95

3.05

3.00

12#

2.64

2.77

2.80

13#

2.34

2.41

2.50

14#

2.03

2.11

-

15#

1.83

1.83

1.80

16#

1.63

1.65

1.65

17#

1.42

1.47

1.40

18#

1.22

1.25

1.20

19#

1.02

1.07

1.00

20#

0.91

0.89

0.90

21#

0.81

0.813

0.80

22#

0.71

0.711

0.70

23# to 34# also available for galvanized iron wire.

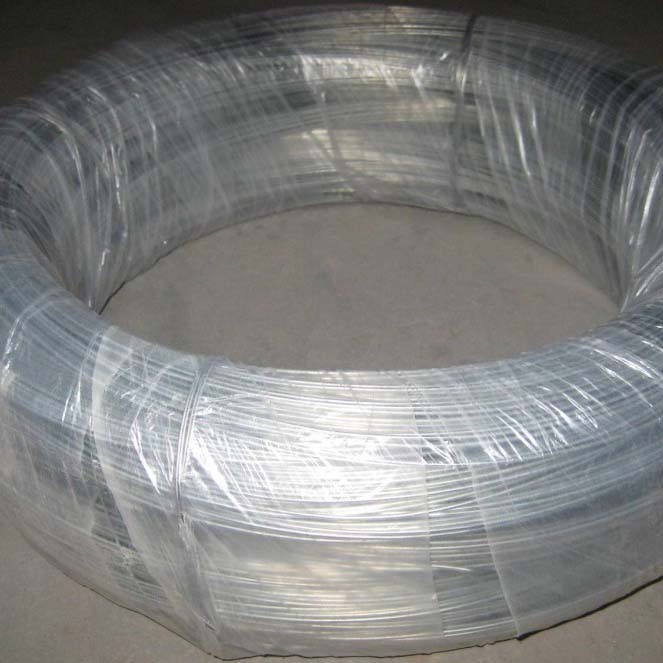

General packing: plastic film inner and hession or woven bags outer, and it also be in bobbions. The weight can be from 0.5kg to 500kgs per coil.
