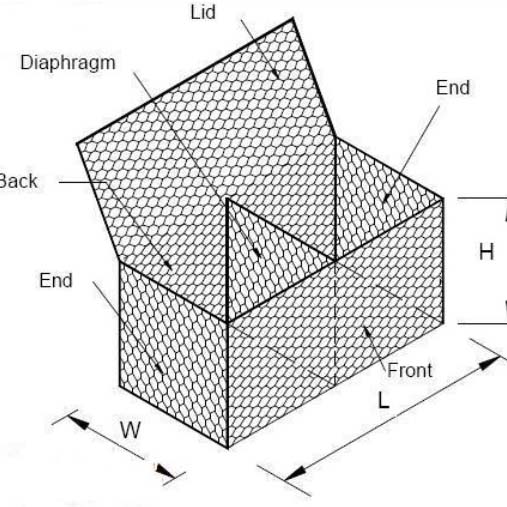

1. Gabions box sizes: 2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m. Custom orders available.
Finish can be hot-dipped galvanized, galvanized aluminum alloy or PVC coated, etc.
Gabion boxes applications:
Flood bank or guiding bank
Control and guide of water or flood
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area.
| Hexagonal Wire Netting Gabions | |||
Opening |
Wire Diameter(Metal Wire) |
Wire Diameter (PVC Coate)/ |
Strands |
60X80 |
f2.0-2.8 |
f2.0/3.0-2.5/3.5 |
3 |
80X100 |
f2.0-3.2 |
f2.0/3.0-2.8/3.8 |
3 |
80X120 |
f2.0-3.2 |
f2.0/3.0-2.8/3.8 |
3 |
100X120 |
f2.0-3.4 |
f2.0/3.0-2.8/3.8 |
3 |
100X150 |
f2.0-3.4 |
f2.0/3.0-2.8/3.8 |
3 |
120X150 |
f2.0-4.0 |
f2.0/3.0-3.0/4.0 |
3 |
2. Matter:
Mattresses, like gabions, are also rectangular steel wire mesh cages but they are smaller in height (less than 0.5m). They are also used for sea and lake shore protection, river training, erosion control, soil retention and road and railway consructions ...etc
Gabion Mattresses |
|||
Mesh Opening of 50x70mm |
|||
Length (a) (m) |
Width (c) (m) |
Height (b) (m) |
Tolerances |
3,00 |
2,00 2,00 2,00 2,00 |
0,15-0,20-0,25-0,30 |
Length %3 |
Gabion Mattresses |
|||
Mesh Opening of 60x80mm |
|||
Length (a) (m) |
Width (c) (m) |
Height (b) (m) |
Tolerances |
3,00 |
2,00 2,00 2,00 2,00 |
0,17-0,23 |
Length %3 |
Galvanised & PVC coated wire used. |
|||
3. Welded Wire Mesh Gabion Box
Gabions and Mattress
Hot-dipped galvanized;
Electro galvanized;
Hot-dipped galvanized then PVC-coated;
Electro galvanized then PVC-coated;
Material:Low carbon steel
Using: Gabions and mattresses will revegetate over time as the structure collects soil and the airborne or waterborne seeds of locally occurring plantlife
Size of the Gabions Basket |
Remarks |
Tolerance |
|||
Length(M) |
Width(M) |
Height(M) |
Unit |
Cubage |
Width:5% |
2.00 |
1.00 |
0.30 |
1 |
0.60 |
|
3.00 |
1.00 |
0.30 |
2 |
0.90 |
|
4.00 |
1.00 |
0.30 |
3 |
1.20 |
|
2.00 |
1.00 |
0.50 |
1 |
1.00 |
|
3.00 |
1.00 |
0.50 |
2 |
1.5 |
|
4.00 |
1.00 |
0.50 |
3 |
2.00 |
|
1.00 |
1.00 |
1.00 |
0 |
1.00 |
|
1.50 |
1.00 |
1.00 |
0 |
1.50 |
|
2.00 |
1.00 |
1.00 |
1 |
2.00 |
|
3.00 |
1.00 |
1.00 |
2 |
3.00 |
|
4.00 |
1.00 |
1.00 |
3 |
4.00 |
|
