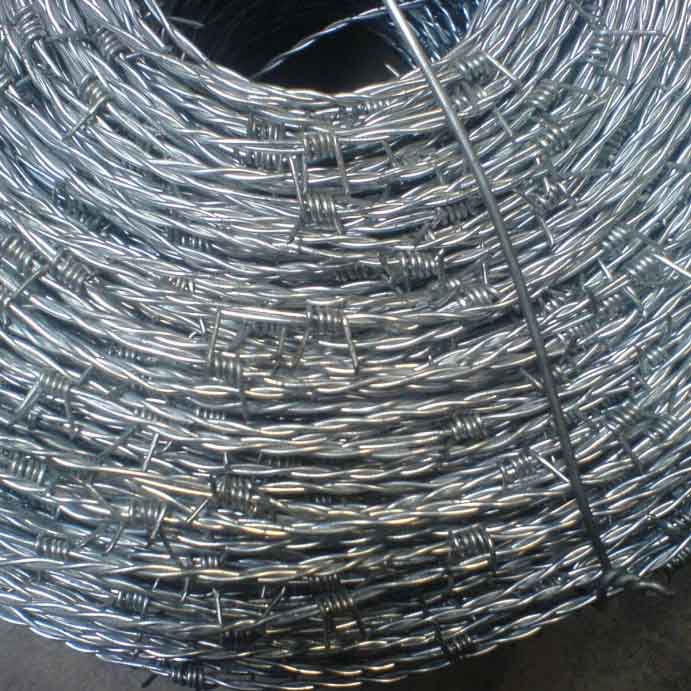

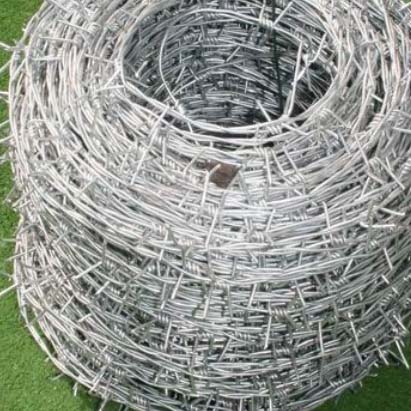

Barbed wire is used as insulation and fence product. It is roped by the barbed wire and main wire, during constructing, there are two forms: beeline installation form and twist cross form.
Materials: Galvanized steel wire（ hot-dipped galvanized wire, electro-galvanized wire），
PVC coated iron wire in blue, green, yellow etc.
Barbed Wire mainly serves in protecting of grass boundary, railway, and highway and also widely used in military, rail, industry, agriculture, animal husbandry, dwelling house, plantation for fencing|
Type |
Wire Gauge (SWG) |
Barb Distance (cm) |
Barb Length (cm) |
|
|
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire |
10# x 12# |
7.5-20 |
1.5-3 |
|
|
12# x 12# |
||||
|
12# x 14# |
||||
|
14# x 14# |
||||
|
14# x 16# |
||||
|
16# x 16# |
||||
|
16# x 18# |
||||
|

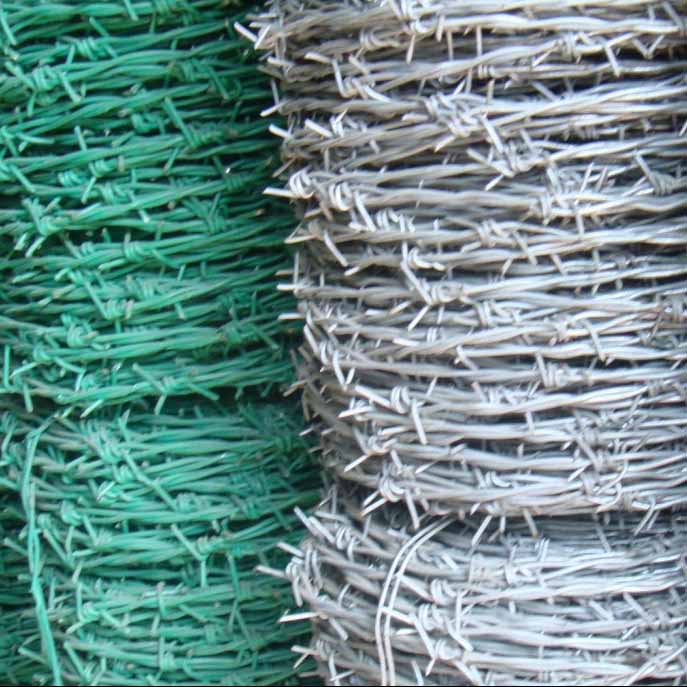

PVC coated barbed wire |
before coating |
after coating |
7.5-20 |
1.5-3 |
|
1.0mm-3.5mm |
1.4mm-4.0mm |
|||
|
BWG11#-20# |
BWG8#-17# |
|||
|
SWG11#-20# |
SWG8#-17# |
|||
|
PVC coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request. |
||||
