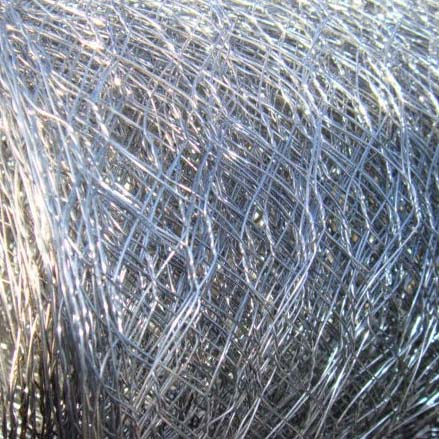

Materials: Low carbon steel wire, stainless steel wire.
Weaving and characteristica: Reverse twisted.galvanizing after weaving or gavanizing before weaving. It is divided to be electro gavanized, hot dipped, stainless steel, PVC coating,etc. It has the characteristics of corrosionresisting and oxidationresisting.
Usage: It is used widey in building, oil, chemical industry, breed, plant protection, food processings , reinforce, guard and heatkeeping,For example, make net cast.stone cage.insulated net wall.boiler cover.poultry fence etc
Galvanized hex. wire mesh is in normal twist |
||
Mesh |
Wire Gauge (BWG) |
|
Inch |
Mm |
|
3/8" |
10mm |
27,26,25,24,23,22,21 |
1/2" |
13mm |
25,24,23,22,21,20, |
5/8" |
16mm |
27,26,25,24,23,22 |
3/4" |
20mm |
25,24,23,22,21,20,19 |
1" |
25mm |
25,24,23,22,21,20,19,18 |
1-1/4" |
32mm |
22,21,20,19,18 |
1-1/2" |
40mm |
22,21,20,19,18,17 |
2" |
50mm |
22,21,20,19,18,17,16,15,14 |
3" |
75mm |
21,20,19,18,17,16,15,14 |
4" |
100mm |
17,16,15,14 |
Galvanized hex. wire netting in reverse twist |
||||
Mesh |
Wire Gauge(BWG) |
Reinforcement |
||
Inch |
Mm |
(BWG) |
Width(ft) |
Strand |
1" |
25mm |
22,21,20,18 |
2" |
1 |
1-1/4" |
32mm |
22,21,20,18 |
3" |
2 |
1-1/2" |
40mm |
20,19,18 |
4" |
3 |
2" |
50mm |
20,19,18 |
5" |
4 |
3" |
75mm |
20,19,18 |
6" |
5 |

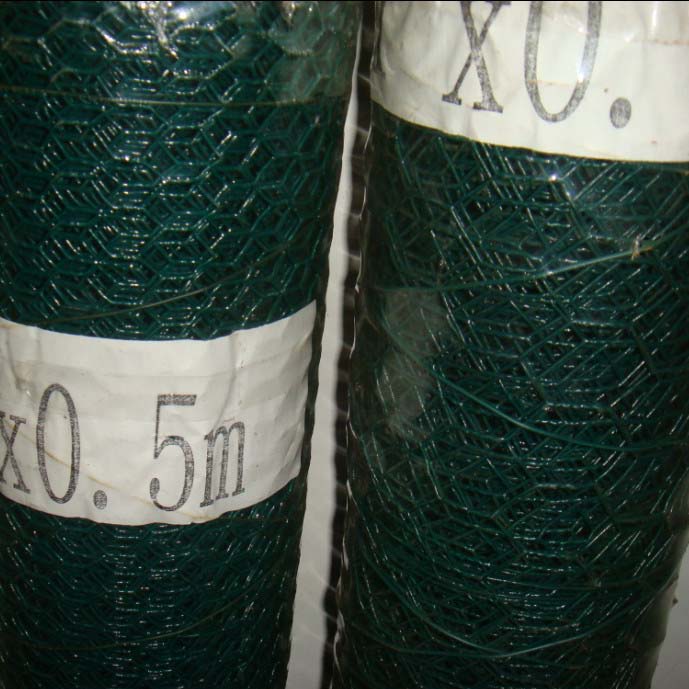

Hex. wire netting PVC-coated |
||
Mesh |
Wire Dia(mm) |
|
Inch |
mm |
|
1/2" |
13mm |
0.9mm,0.1mm |
1" |
25mm |
1.0mm,1.2mm,1.4mm |
1-1/2" |
40mm |
1.0mm,1.2mm,1.4mm,1.6mm |
2" |
50mm |
1.0mm,1.2mm,1.4mm,1.6mm |
