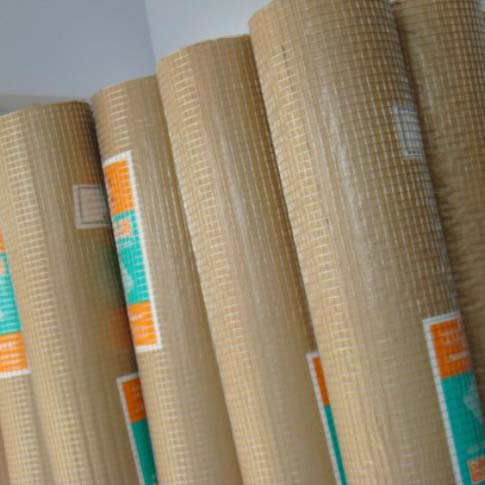

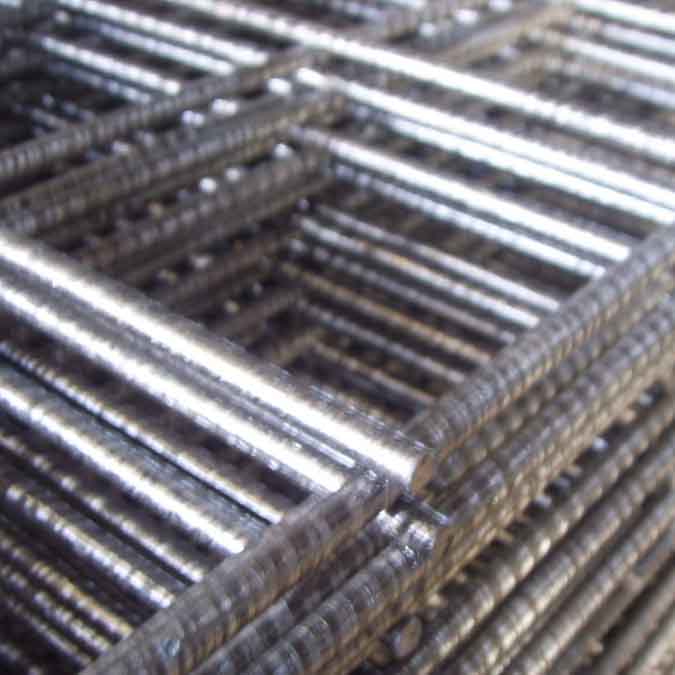

Welded Wire Mesh Processed automatically by the high-quality iron wire, the advanced welding craft is welded vertically and horizontally respectively at every intersect . The finished product is smooth and durable. Electric welding network extensive for industry and agriculture building, traffic and mining industry. Daily writer birds rail, egg basket, poultry enveloping field, drain off water shelf, fruit juice filtering, guardrail, etc.
Generally, the material is in Low carbon steel wire, stainless steel wire, etc.. And the welde type can be devided to be two kinds. First is welded first and then galvanizing. The second is galvanized first and then welded.
Specification List of Welded Wire Mesh: |
||
Opening |
Wire Diameter |
|
In inch |
In metric unit(mm) |
|
1/4" x 1/4" |
6.4mm x 6.4mm |
22,23,24 |
3/8" x 3/8" |
10.6mm x 10.6mm |
19,20,21,22 |
1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21,22,23 |
5/8" x 5/8" |
16mm x 16mm |
18,19,20,21, |
3/4" x 3/4" |
19.1mm x 19.1mm |
16,17,18,19,20,21 |
1" x 1/2" |
25.4mm x 12.7mm |
16,17,18,19,20,21 |
1-1/2" x 1-1/2" |
38mm x 38mm |
14,15,16,17,18,19 |
1" x 2" |
25.4mm x 50.8mm |
14,15,16 |
2" x 2" |
50.8mm x 50.8mm |
12,13,14,15,16 |
|

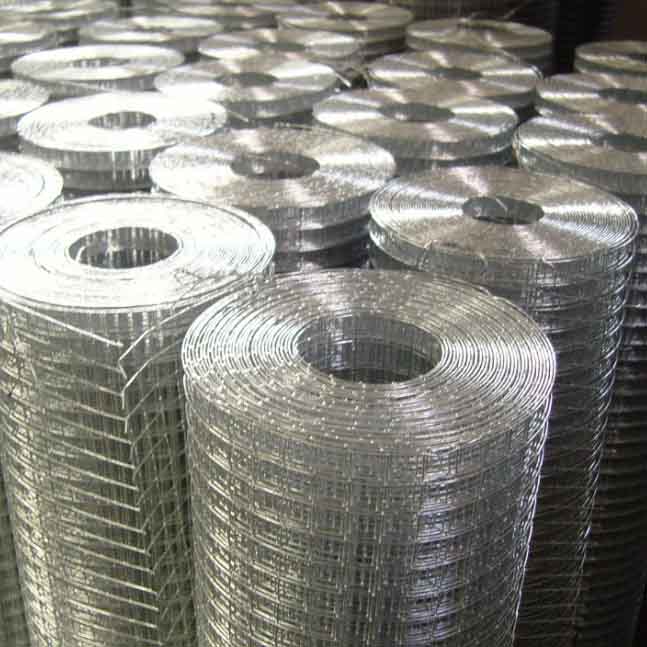

Galvanized Fencing Welded Mesh: |
||
Opening |
Wire Diameter |
|
In inch |
In metric unit(mm) |
|
2" x 3" |
50mm x 75mm |
2.0mm,2.5mm,1.65mm |
3" x 3" |
75mm x 756mm |
2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
2" x 4" |
50mm x 100mm |
2.11mm,2.5mm |
4" x 4" |
100mm x 100mm |
2.0mm,2.5mm |
PVC Coated Welded Mesh: |
||
Opening |
Wire Diameter |
|
In inch |
In metric unit(mm) |
|
1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21 |
3/4" x 3/4" |
19mm x 19mm |
16,17,18,19,20,21 |
1" x 1" |
25.4mm x 25.4mm |
15,16,17,18,19,20 |
Technical Note: |
